TDD

Digital Sensor Display

Overview

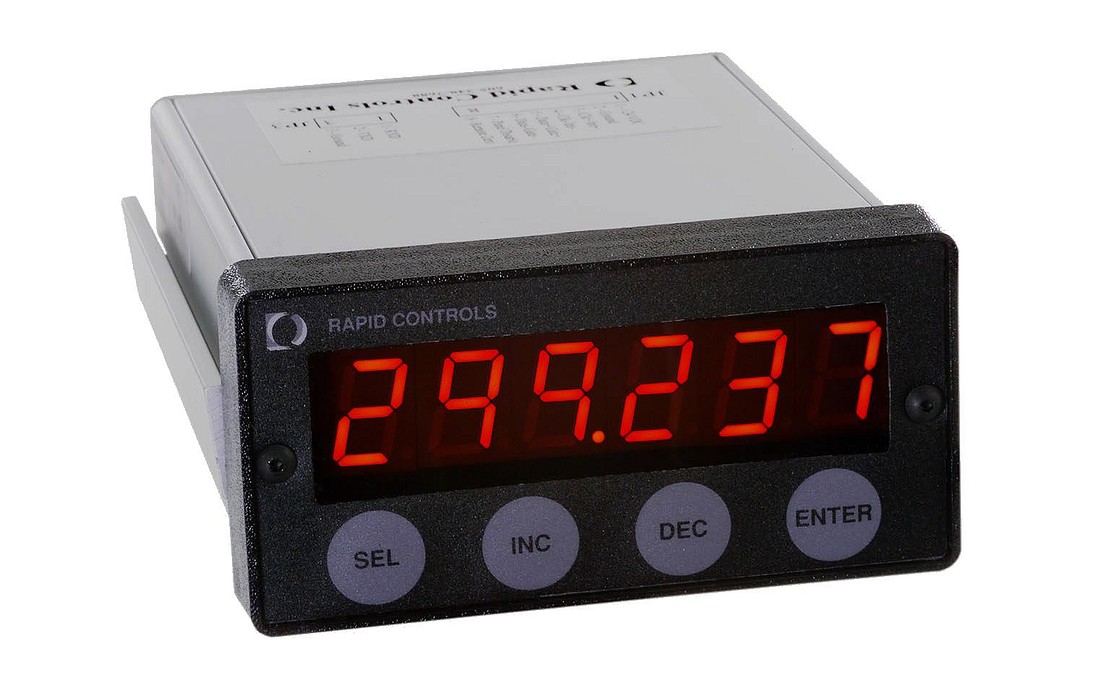

The TDD displays 6 digit position information from a magnetostrictive transducer or quadrature encoder. It is capable of interfacing with a SSI, PWM, Start/Stop or Neuter transducer depending on model. Setup is accomplished via the frontpanel keypad or RS-232/485 serial communications link. The unit has optional programmable limit switches and analog output. A host computer can obtain position and limit-switch information via the RS232/RS485 serial link.

Description

When power is applied, the unit will begin with a LED segment test. Saved configuration settings are loaded from the non-volatile EPROM and the software date is displayed on the LED display for 2 seconds. The display then begins normal operation: interrogating the transducer, displaying position, and controlling limit switches and analog output

During normal operation, the display interrogates the transducer for magnet position information. This information is scaled and offset before being used to update the displayed position and any installed limit switch or analog output modules. Settings can be changed via the RS232 serial link at any time during normal operation. An interactive setup mode can be accessed to allow setup via the front panel. Serial communications are suspended during front panel setup

Features

Six digit, 0.57 inch high, seven segment, red LED display
Interfaces to Start/Stop, PWM or SSI transducers
Fast 5-millisecond update rate
Programmable decimal point, units, scale, and resolution
Optional five-channel programmable limit switch and analog output module

Specifications

Parameter	Units	Min	Typ	Max	Notes
Enclosure	in (mm)	—	3.78 (96) x 1.75 (44.5) x 4.68 (119)	—	Metal Encslosure W x H x D 1/8 DIN panel cutout
Control I/O	V	0V	0V	—	Remote zero input
Display	—	-199999	10.9999	999999	6 digit LED decimal point to the right of any character
Supply Power	V	7	24	26.4	Typically same as sensor supply (R option requires 20 to 26.4V)

Downloads

User Manual
TDD User Manual v20170223 Feb 23, 2017
- Download Adobe PDF
TDD User Manual v20061027 Oct 27, 2006

Download Adobe PDF
Show older User Manual downloads
User Manual
TDD Comm Manual v20021010 Oct 10, 2002
- Download Adobe PDF
Setup Utility
TDD WinComm v1.7 Jun 11, 2010
- Download Windows Executable
Application Note
TDD-R as TDU Replacement App Note v20090129 Jan 29, 2009
- Download Adobe PDF

Ordering Information

Selected Model: TDD

Quantity	Price (ea)
1+	$535.00

TDD Sensor Support
	-S	SSI (Synchronous Serial Interface)	Included in Price
	-P	PWM	Included in Price
	-R	Start/Stop	Included in Price
	-RR	Re-circulated Start/Stop	Included in Price
	-N	Neuter Start/Stop	+$40.00
	-NR	Nueter Start/Stop with Recirculations	+$40.00
	-X	Serial interface used in lieu of sensor interface (for -SLV slave devices)	-$50.00
Digit Size and Enclosures
		Six standard-height 0.57" digits	Included in Price
	-EPR	Standard digits mounted in a 14x8x6-inch NEMA-12 steel enclosure with internal connections	+$415.00
	-LD1404	2-inch digits in a 14x4x4-inch aluminum enclosure with external connections	+$600.00
	-LD1206	2-inch digits in a 12x6x4-inch steel enclosure with external connections	+$600.00
	-LD1206-EPR	2-inch digits in a NEMA-12 12x6x4-inch steel enclosure with internal connections	+$450.00
	-ND	No Display (serial interface only)	-$80.00

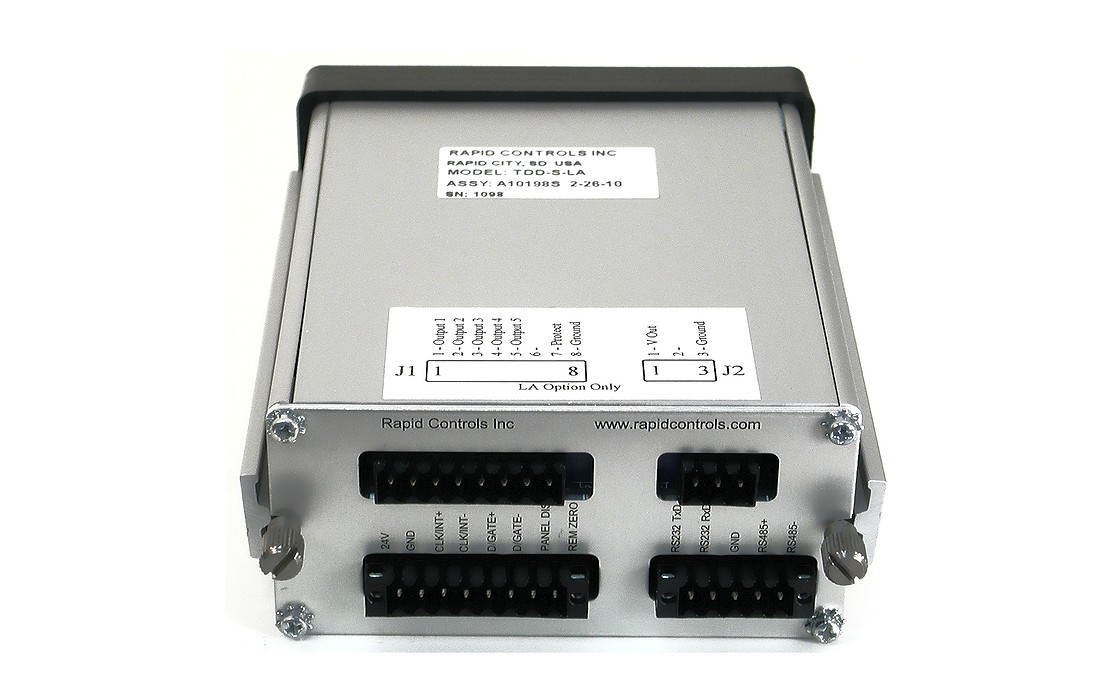

Limit Switch and Analog Output
		No limit switches or analog output	Included in Price
	-LA	5-channel solid state sinking limit switches with 12-bit voltage analog output	+$250.00
	-LA420	5-channel solid state sinking limit switches with 12-bit current analog output	+$300.00
	-R	5-channel mechanical relay limit switches	+$200.00
	-A16	2-channel 16-bit voltage analog output	+$250.00
TDD Magnet Configuration
		Standard single magnet support	Included in Price
	-MM15	Supports 1 to 15 magnets (-R Start/Stop sensor support option only)	+$80.00
Miscellaneous Options
		No additional options	Included in Price
	-PKRD	Peak read support	+$75.00
	-LIN	Internal linearity correction table (Not avail with MM15)	+$110.00
	-MST	Multi-display Master (valid with TDD-R-MM15 only)	Included in Price
	-SLV	Multi-display Slave (valid with TDD-X-MM15 only)	Included in Price
