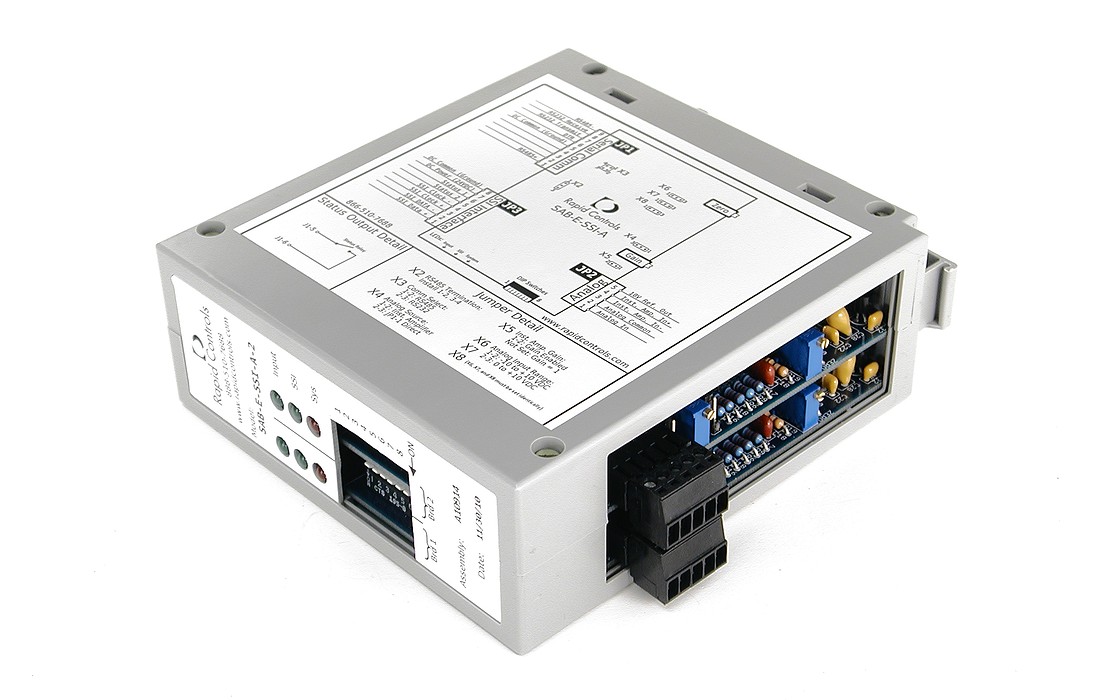

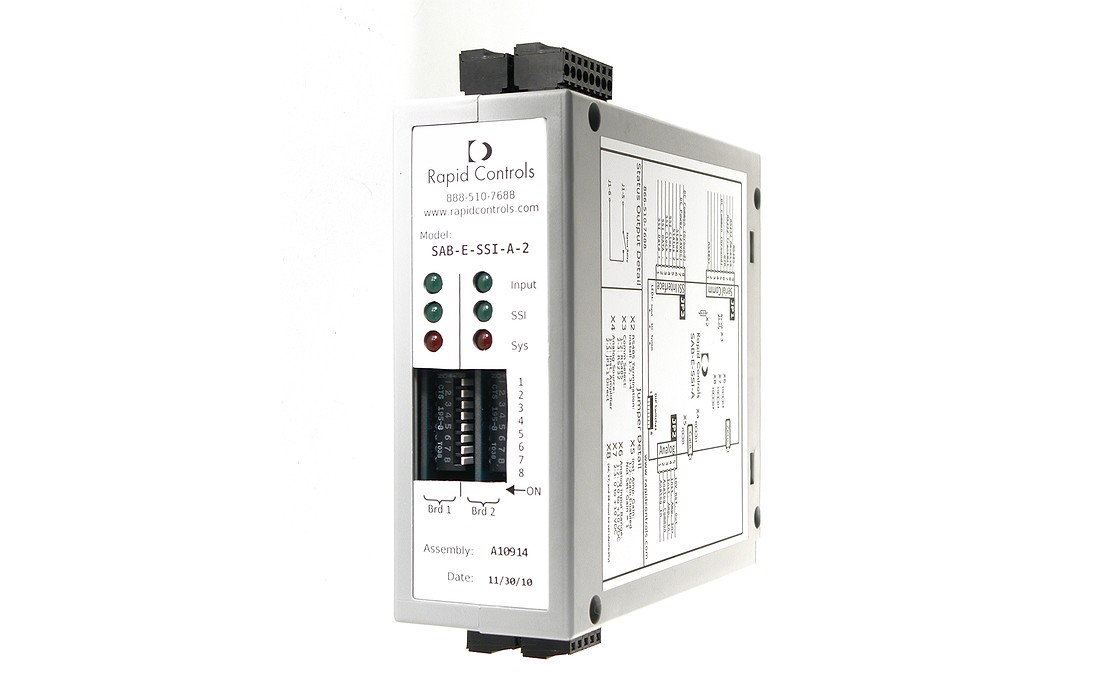

SAB-E-SSI

Start/Stop, PWM, or Analog to SSI converter

Overview

The SAB-E-SSI module converts Start/Stop, PWM or analog transducer inputs to an SSI format suitable for use by a motion controller or other device

Description

The SAB-E-SSI module converts Start/Stop, PWM or Analog transducer inputs to an SSI format suitable for use by a motion controller or other device. The conversion is implemented with a micro-controller and EPLD allowing a wide range of flexibility and speed. The module continually interrogates the input transducer and responds to the SSI clock signal with the latest conversion information Some setup items are controlled via the dip switches and a setup mode allows setting of parameters via the serial port. The module can also be ordered as a slave which accepts serial commands defining the SSI output value.

SAB-E-SSI-R measures one channel of Start/Stop or PWM sensor with up to 5 micron resolution. The software settable Gradient is stored in EEPROM.

SAB-E-SSI-A measures one channel of uni-polar or bipolar voltage input, +/- 10V or 0 to 10V using a 16 Bit A/D converter and multiple ranges. The software settable Scale is stored in EEPROM.

Features

  • Measures one channel of Start/Stop, PWM or analog sensor
  • Sensor is elctrically isolated from the converter output
  • Outputs one channel of 24 or 25 bit binary or Gray Code SSI output
  • Fast output supports up to 625 KHZ clock speed
  • Dip Switch programmable measurement resolution
  • Analog Instrumentation amplifier and precision reference for bridges etc..

Specifications

ParameterUnitsMinTypMaxNotes
Supply Power V 7 24 26 Supply Power

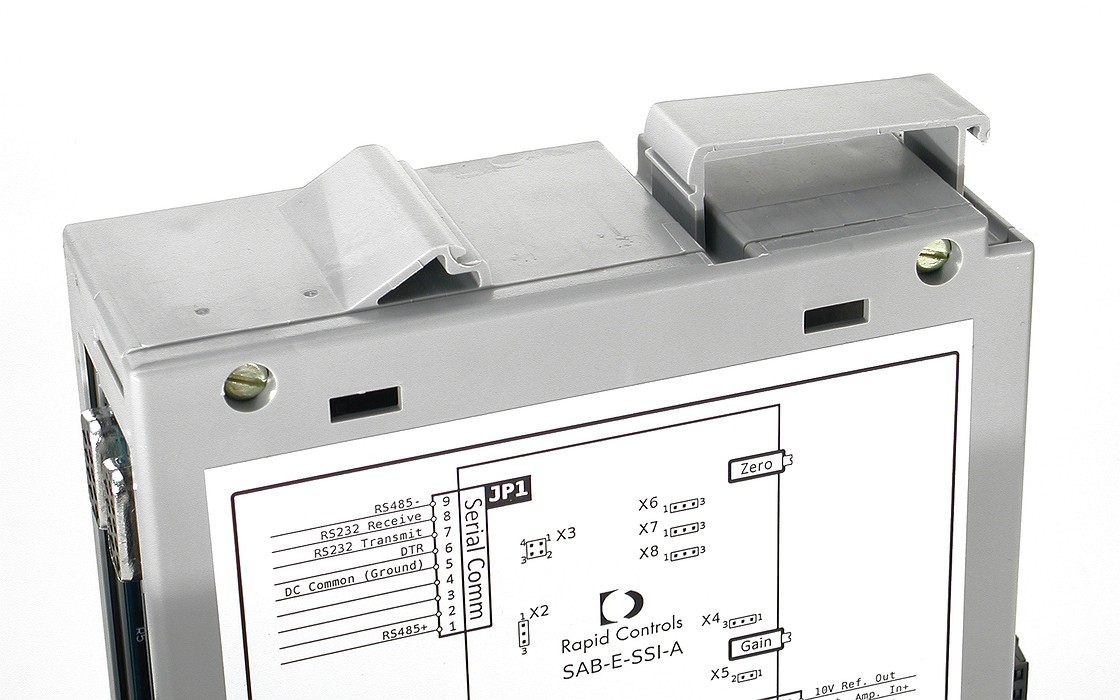

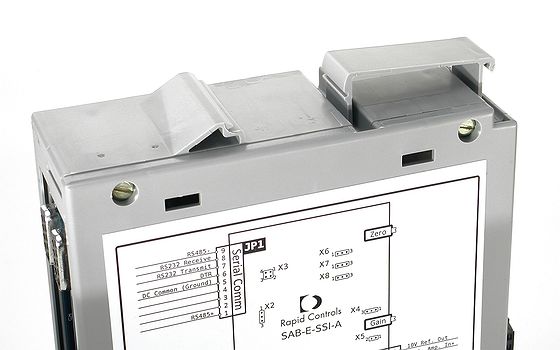

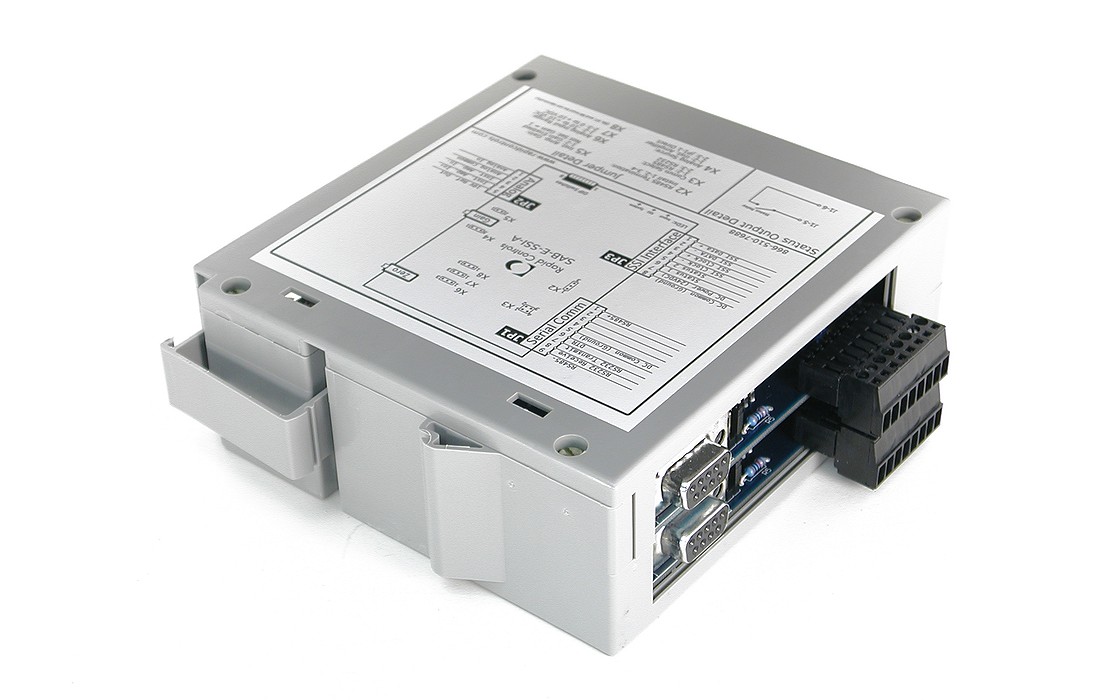

Enclosure Inches (mm) — — — DIN Rail Mount 4.64 (118) x 5.31 (135) x 1.77 (146)
Sensor Input Channels — 1 1 1 Analog or Magnetostrictive

Downloads

Ordering Information

Selected Model: SAB-E-SSI

Quantity Price (ea)
1+ $654.00

Sensor Type
