CAB

Cable and terminal block for PCI4, ISA6, and SAB-P

Overview

Cabling and screw terminal connections to your PCI4, ISA6, or SAB-P. To add screw terminal connections, simply mount the terminal block on a DIN rail and connect the cable.

The CAB- series is available as a pigtail cable or as an assembly with a DIN rail mount terminal block.

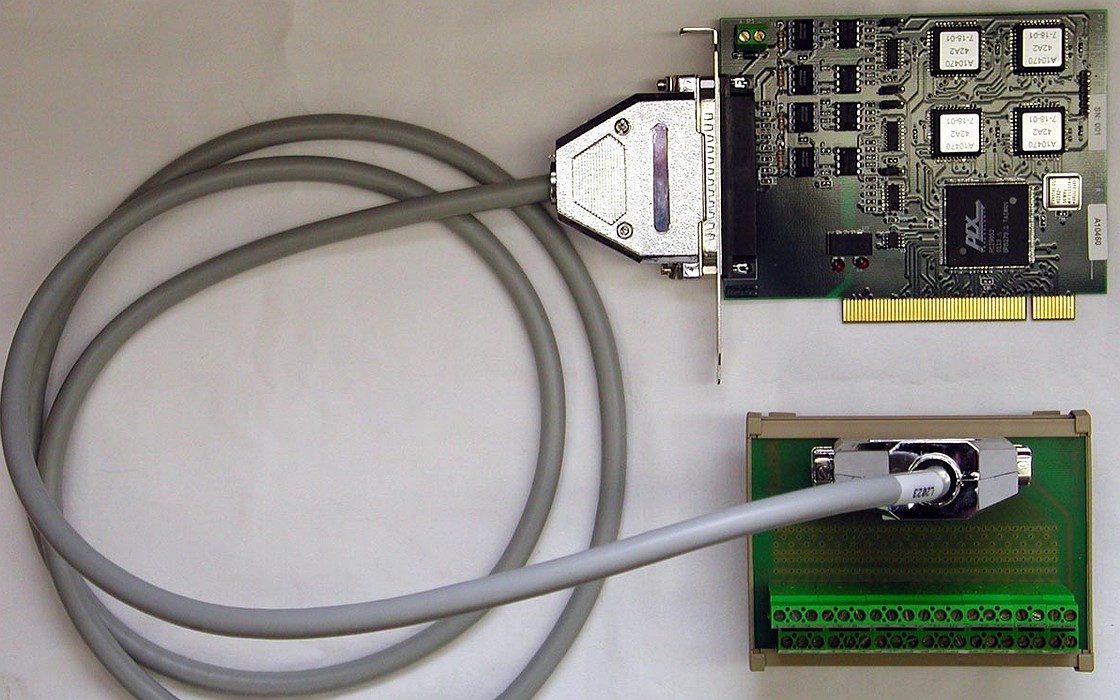

PCI4 with CAB-TERM-37

Description

The CAB- seris of cable is designed to allow simple connections to Rapid Controls products with large pincount connectors. Available as a pigtail cable or an assembly with cable and DIN rail mount terminal block.

CAB- models are available to support these products:

PCI4 (CAB-x-37-x)
ISA6 (CAB-x-37-x)
SAB-P-D2 (CAB-x-34-x)
SAB-P-D1 (CAB-x-34-x)

Ordering Information

Selected Model: CAB

Quantity	Price (ea)
1+	$55.00

Termination
	-TERM	Cable and Screw Terminals	+$91.00
	-PIGTAIL	Cable only	Included in Price
CAB-TERM Connector Pin Count
	-37	37-pin DSUB (compatible with PCI4, ISA6)	Included in Price
	-34	34-pin IDC header (compatible with SAB-P-D1 and SAB-P-D2)	Included in Price
Cable Length (please call for custom lengths)
	-3	3 foot cable	Included in Price
	-5	5 foot cable	+$26.00
	-10	10 foot cable	+$47.00
	-20	20 foot cable	+$66.00
	-30	30 foot cable	+$91.00
