SAB-P-D2
Sensor to parallel IO converter
Overview
The SAB-P-D2 Parallel Interface module measures magnetostrictive transducer position, scales and offsets this position and presents the value to a host controller as a 24 bit Binary or BCD format parallel output
Description
The SAB-P-D2 Parallel Interface module measures magnetostrictive transducer position, scales and offsets this position and presents the value as a 24 bit Binary or BCD format parallel output. The 24 outputs are open collector sinking outputs (optionally source or TTL). The SAB-P-D2 can function with Start/Stop, PWM or SSI transducers. The SAB-P-D2 continually measures the transducer position and updates the latched outputs. A setup mode allows setting of recirculations, transducer length, output format, etc via the RS232/RS485 port. An optional analog output provides position or velocity information in an analog form. Transducer position information is also made available to the host via the RS232/RS485 interface using Modbus ASCII protocol.
Features
- Twos Complement binary or BCD output format
- 24 bit Magnetostrictive transducer position, 0.005 mm (0.00019685 in) resolution in Start/Stop mode
- Fast operation, outputs can be updated as often as 5000 times per second

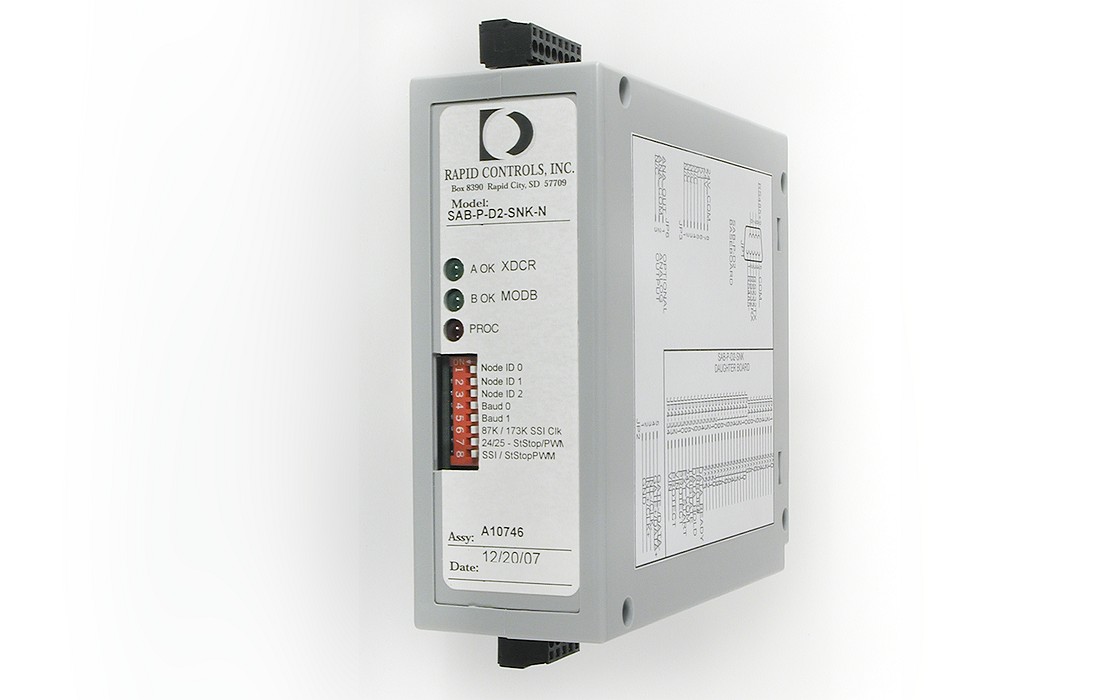

- Dip-switch selectable use with Start/Stop, Pulse Width or SSI transducers

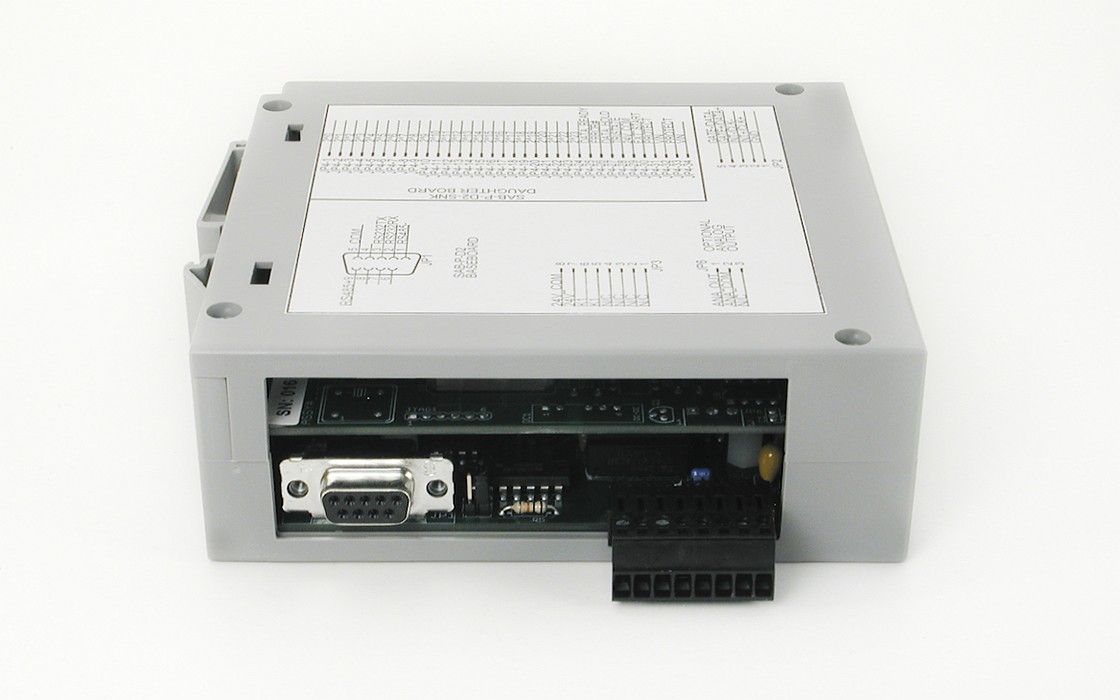

- RS232 or RS485 multi-drop communications at 9600, 19200, 38400 or 57600 baud
- Supports subset of Modbus ASCII

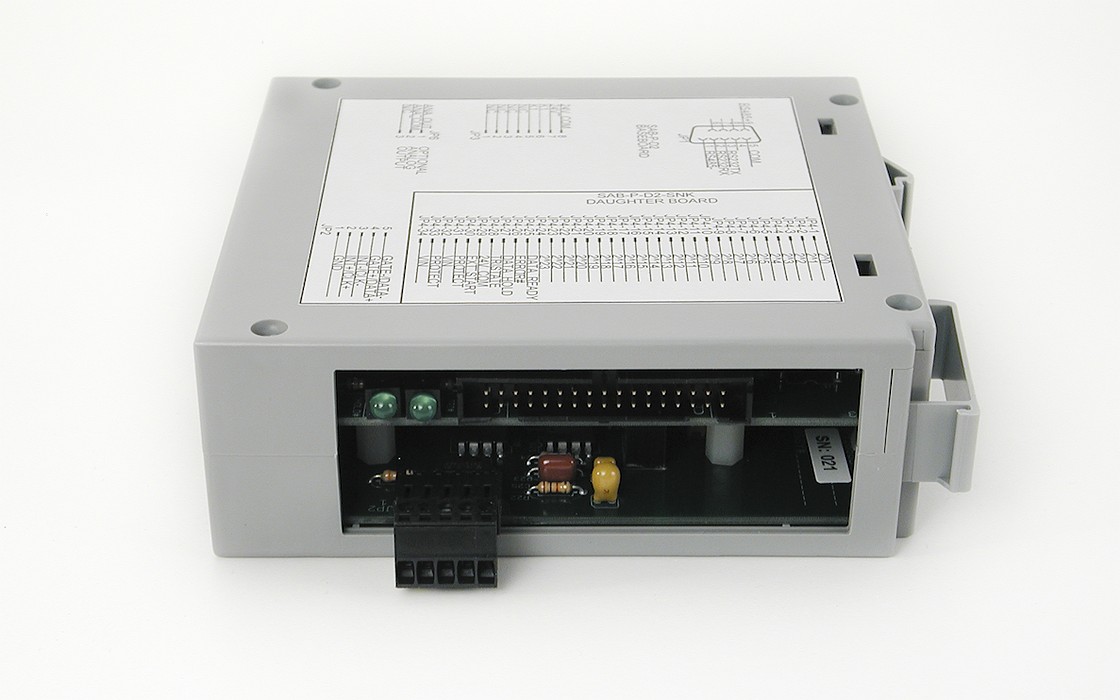

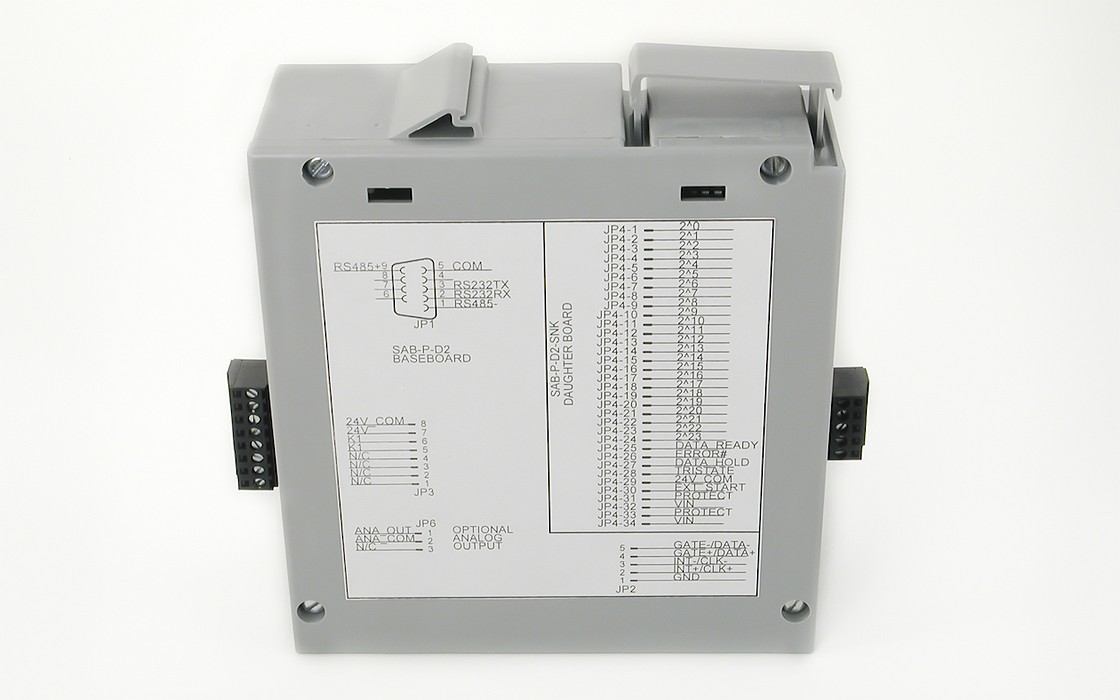

- 34 Pin IDC header for status and 24 bit binary/BCD output
- Analog Output represents Forced value, Position or Velocity
- Analog Output ranges: +/- 10V, +/- 5V, +/- 2.5V , 0 - +5V and 0- +10V).
- Analog Output 16 bit DAC resolution, Polarity and Scale
Specifications
Parameter | Units | Min | Typ | Max | Notes |
---|---|---|---|---|---|
Measurement Resolution | Inch (mm) | — | 0.00019685 (0.005) | — | Start/Stop with one recirculation |
Control I/O | - | — | 24 | — | Number of position outputs |
Control I/O | — | — | 2 | — | Number of Status and Control Outputs |
Control I/O | ma | — | 500 | — | Maximum current on each output |
Control I/O | usec | — | 60 | — | Data ready output busy during update of the output |
Control I/O | usec | — | 25 | — | Data ready output busy after output is actually latched |
Update Rate | Hz | 125 | - | 5000 | Update Rate |
Supply Power | V | 12.5 | 24 | 26 | Supply Power |
Enclosure | — | — | — | — | DIN Rail Mount occupies 1.5 inches of rail space |
