SAB-P-D1
SAB-P Parallel Transducer Interface
Overview

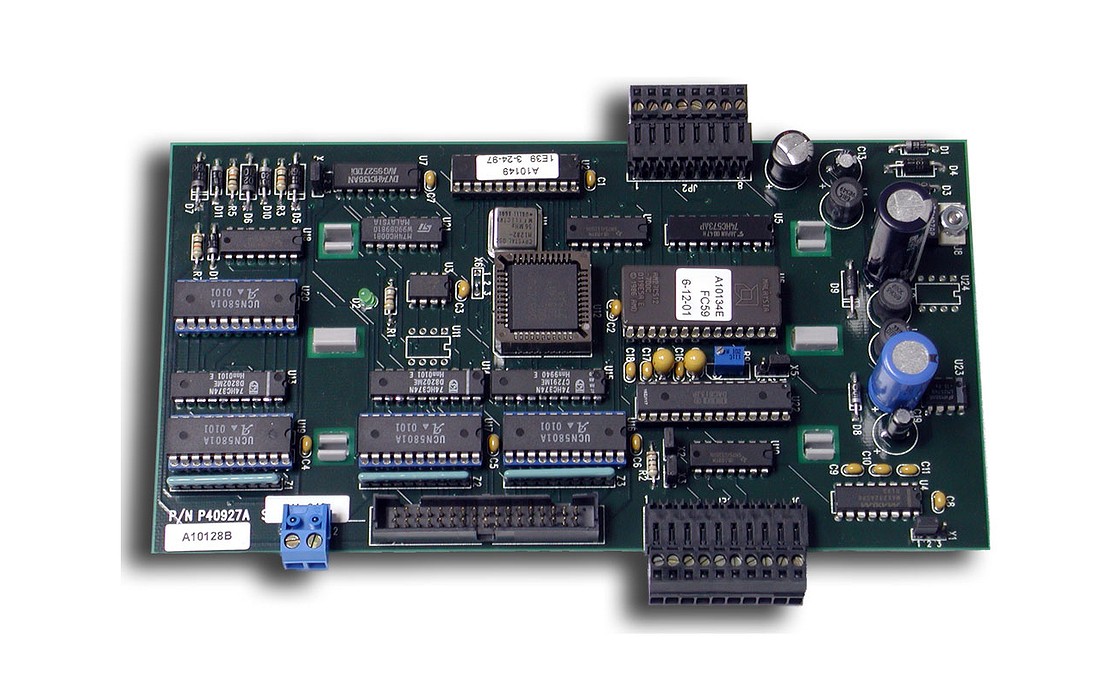

The SAB-P-D1 parallel interface board measures magnetostrictive transducer position, scales and offsets this position, and presents the value as a 24 bit Binary or BCD format parallel output.
Description
The SAB-P-D1 parallel interface board measures magnetostrictive transducer position, scales and offsets this position, and presents the value as a 24 bit Binary or BCD format parallel output. The 24 outputs are open collector sinking outputs (source type is optional). The board can function with Start Stop or pulse width transducers or with SSI transducers. The board continually interrogates the transducer for position and updates the latched outputs. Transducer position information is also made available to the host via the RS232/RS422/RS485 interface. A setup mode allows setting of recirculations, transducer length, output format, etc via the RS232/RS422/RS485 port. An optional analog output provides position or velocity information in an analog form.
Generates +/-15V for use with Tempo II sensors.
This is a board which can be mounted on DIN-RAIL with the supplied adapters.
Features
- 24 bit TEMPOSONICS position, 0.0005 inch resolution with 4 recirculations
- Use with Start/Stop or Pulse Width or TEMPO III Synchronous Serial (SSI)
- Natural Binary or BCD output format
- Setup of Scale, direction, offset, recirculations and output type is done via the serial link.
- Convenient removable Screw terminals for all field side connections.
Specifications
Parameter | Units | Min | Typ | Max | Notes |
---|---|---|---|---|---|
Measurement Resolution | — | — | — | — | 56 MHz Oscillator for 0.001 inch resolution with 2 recirculations on TEMPO II |
Control I/O | — | — | — | — | 26 open collector outputs. Max 50V and 500 ma. Pull-ups installed |
Quantity | — | — | — | — | 34 Pin IDC header for status and 24 bit binary/BCD output. |
Quantity | — | — | — | — | Data Ready Output goes low for 60 microseconds to indicate busy during update of the output. Data is actually latched 35 microseconds after Data Valid goes low and 25 microseconds before it returns hi |
Supply Power | V | 18 | 24 | 25 | Supply Power |
Supply Current | ma | — | 400 | — | Supply Current |
Supply Current | ma | — | 300 | — | Generated +/-15V useable current |
Enclosure | Inches (mm) | — | 7.5 (190.5) x 4.00 (101.6) | — | Physical Size: width x Length |
Enclosure | Inches (mm) | — | 7.5 (190.5) | — | Occupies DIN Rail Mount rail space |
